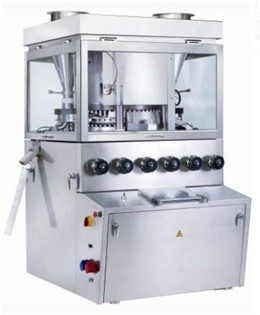

Model: GZPL-620 Series High Speed Tablet Press
Description:Advanced, rational design is the basis of excellent quality products. Integrated with many years’ experience for manufacturing High Speed Tablet Press and modern science & technology, GZPL-620 Double Rotary High Speed Tablet Press provide new design principle, which make standardization, modularity and series design come true. The characteristic of machine is high-precision, high-speed and automation. It is the best choice for high output and large batch production.
Features
Design of GMP
High quality all stainless steel construction
Special oil-proof & dust-proof sealing systems
Realiable safety sealing system and dust-proof system
High visibility isolated door to prevent cross contamination
Easily remove and install parts for quick machine’s maintenance
3600design for easy observation and cleaning
Main Technical Data
Model | PG 45 | PG 55 | PG 65 |
Number of Station | 45 TSM-D EU-D | 55 TSM-B EU-BB | 65 TSM-BB EU-BB |
Max. Output（tablets/h） | 405,000 | 495,000 | 585,000 |
Max. Tablet Diameter (mm) | 25 | 16 | 13 |
Max.Tablet Length (mm) | 25 | 19 | 16 |
Max. Filling Depth(mm) | 20 | 16 |
|
Max. Tablet Thickness(mm) | 8 |
|
|
Max. Main Compression Force (kN) | 100 |
|
|
Max. Pre-compression Force(kN) | 16 |
|
|
Power Supply | As per the requirement |
|
|
Rated Power (kW) | 13.2 |
|
|
Overall DimensionL × W × H (mm) | 1,380×1,510×2,000 |
|
|
Weight (kg) | 3,140 |
|
|
Excellent Tablet Pressing System
Pre-pressure and main pressure, compact design and five-pole construction to ensure nondeforming upon heavy load pressure, long dwell time and steady performance. Also increasing tablet weight accuracy and tablet hardness control.
Automatic Tablet Weight Control System
PLC control system, with POD interface for operation. Automatic Tablet weight tolerance monitoring and controlling.
Force Feeding System
High precision, easy removed force feeder with two agitators for improving granule fluidity to ensure precision feeding.
Reliable Electric System
Advance control theory and reliable electrical components and spare parts from world leading suppliers to ensure program control and interlock protection.
Suppliers of Main Components
No. | Supplier | Components | Origin |
1 | SIEMENS | Control System & Electric Parts | GERMANY |
2 | HAWE | Hydraulic System | GERMANY |
3 | HYDAC | Hydraulic System | GERMANY |
4 | INA | Transmission System | GERMANY |
5 | MITSUBISHI | Control System & Electric Parts | JAPAN |
6 | Fuji | Control System | JAPAN |
7 | OMRON | Electronic System | JAPAN |
