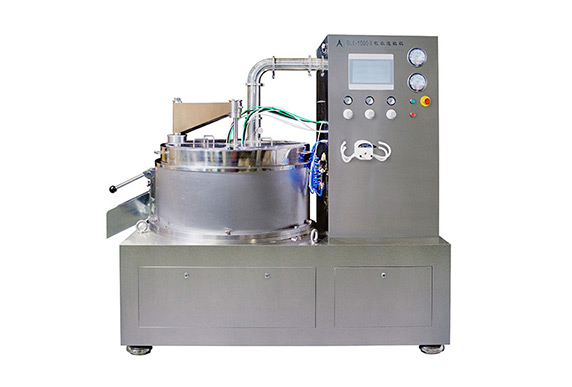

The BLL-1000 III coating granulator is the production equipment for various spherical pills. It can produce high-quality pellets, micro-pellets, bulk granules (Qimu method) and different combinations of different drug layered particles, as well as pill coating (film, enteric, gastric soluble, protective layer, coloring, etc.) and drying. The manufactured particles have a high rate of true sphericity, which are uniform in size, beautiful and easy for quantitative analysis, with a high yield.In addition, it can also be used in food, pesticide, chemical and other fields. A patented powder supply technology is used for the equipment. The vacuum feeding machine automatically feeds material, and the feeding range spans a greater extent, and it basically eliminates material puffing.
PARAMTER
NUMBER | NAME | PARAMETER |
1 | Masterbatch minimum input (blank) | 5kg |
2 | Maximum pellet output (blank) | 100 kg |
3 | True sphericity of particles | ≥0.9 |
4 | Air blower supply | 500L/min |
5 | Hot air temperature | 25～80°C |
6 | Turntable diameter | 1000mm |
7 | Disk speed range | 0～200r/min |
8 | Speed control method | frequency changer |
9 | Feeding method | patented technology |
10 | Powder supply range | 15mL～3000mL/min |
