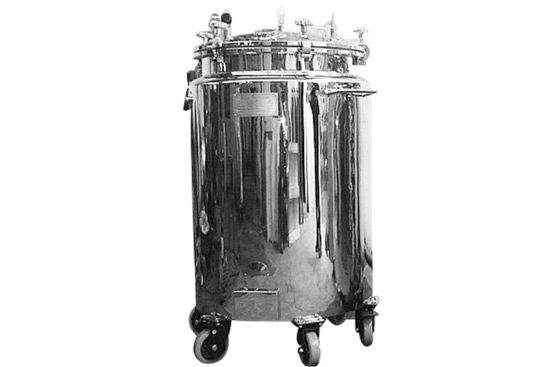

Used for insulated storage and stewing of gelatin and material. The tank body is a three-layer structure of inner liner, heating layer and insulation layer.The heating tank is heated electrically and the temperature controller controls the temperature.The lids are equipped with pressure gauges, pressure regulators, safety valves, windows, etc.The bottom of the tank is equipped with a ball valve for material removal, and the sandwich layer is equipped with a drain valve. The lid is a quick-release structure, which ensures the seal in the tank after locking.The tank has the advantages of strong heat preservation, smooth liquid feeding, and easy cleaning.
PARAMTER
NUMBER | NAME | PARAMETER |
1 | Volume | 200L/300L |
2 | Power supply | 1P, 220V, 50Hz, 2kW |
3 | Working pressure | 0~0.08MPa |
FEATURES
Electric heating is used for keeping the temperature. The working temperature is from room temperature to 80°C, and material temperature is controlled at ±1°C.
